Product Information/Specifications:

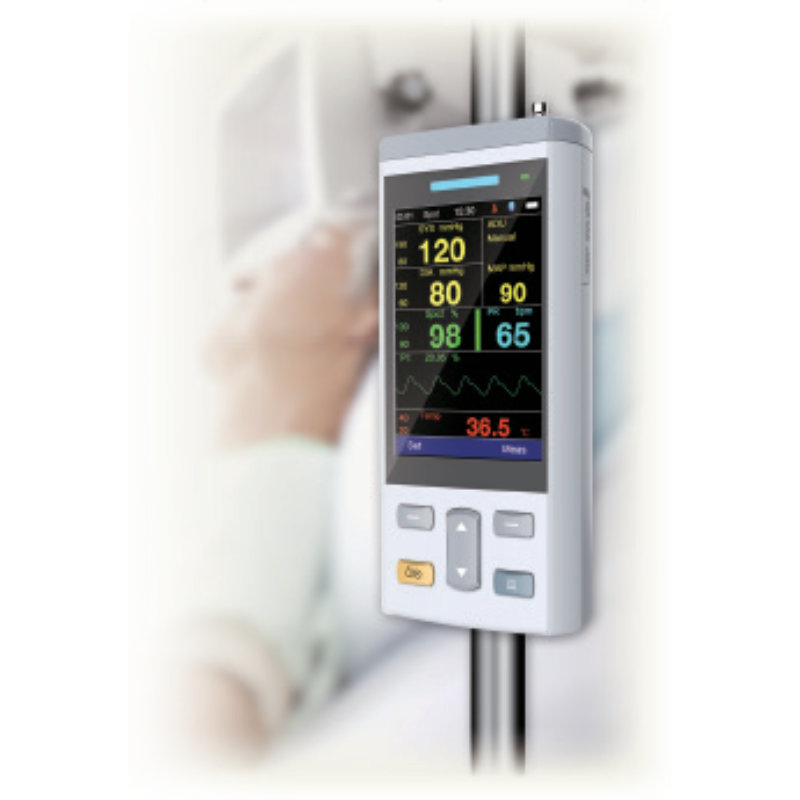

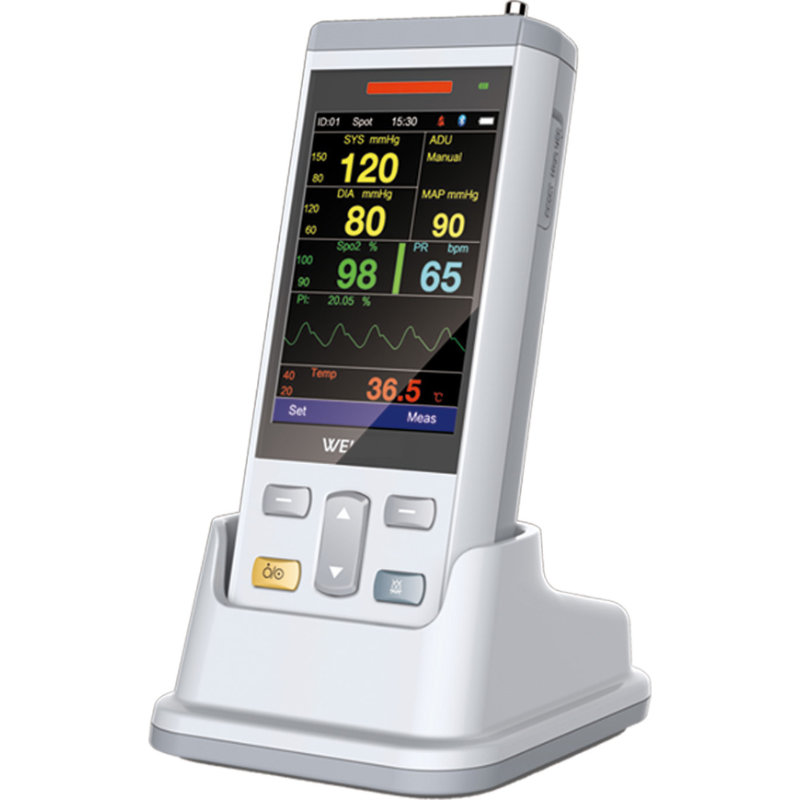

The world's smallest Hand Held Vital Signs Monitor

• Handheld, desk top, or mobile stand mounting
• Simultaneous measurement NIBP, SpO2, pulse, temperature
• Plethysmograph display
• Selectable, adult / paediatric / neonatal mode
• Variable parameter selection
• Data review
• Trend
• 100 patient data storage
• Audible / visual alarms
• Lithium ion battery (8 hours)

• NIBP measurement range, Pulse rate range: 40~240bpm
• NIBP measurement accuracy: ± 3mmHg
• Pulse rate measurement accuracy: <=2% (>=100 BPM) or 2 beats/min (<100 BPM)
• Independent software protection pressure | Adult: 300mmHg | PED:240mmHg | NEO:150mmHg
• Independent hardware protection pressure | Adult: 320-330mmHg | PED: 265-275mmHg | NEO: 160-165mmHg

• Measurement range: SpO2: 0-100% | PR: 0-254bpm | Rerfusion index: 0.05%-20% | SpO2 saturation: 70-100% | Pulse rate: 20-254BPM | Perfusion Index: 0.025%-20%
• Measurement accuracy: SpO2: Adult (Including pediatric) + 2 digit (70-100%) not defined (70%) | Neonate +3digits | not defined (<70%) | Perfusion Index: 0.05%-20%
• Resolustion: SpO2 saturation: 1% | Pulse rate: 1BPM

• Measurement range: 25-45°C
• Resolution: 0.1°C
• Accuracy: 0.1°C
• Battery: Lithium ion Operation time: 8 hours for normal operation
• Temperature: Operating: 0°C~45°C Storage / Transportation: -20°C~65°C
• Humidity: Operating: 15% to 90% noncondensing Storage: 0% to 95% noncondensing
• Altitude: Operating Altitude: Up to 5000 Meters
• Size: 146mm x 67mm x 30mm (Weight 250g)
