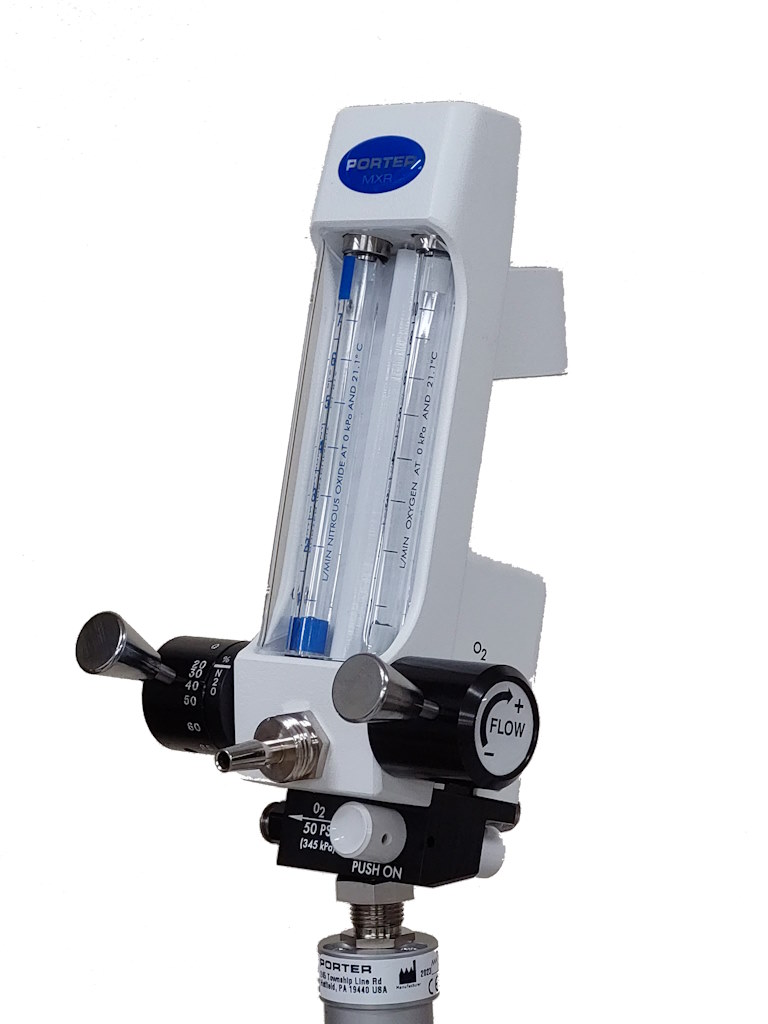

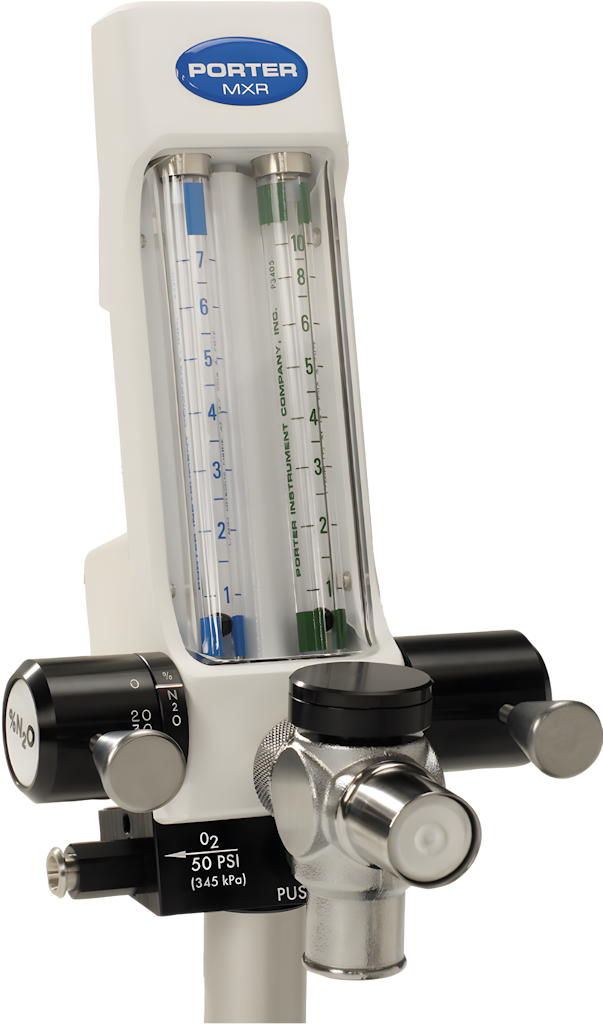

MXR Continuous Flow Nitrous Oxide & Oxygen Systems
Product Information/Specifications:
The MXR is the most trusted and recognized flowmeter featuring Porter precision glass indicator tubes and ergonomic single motion controls.
The MXR 3000 is designed for those who would prefer an at-your-side vertical flowmeter. Precision, durability, and ease of operation have made this slender and sleek flowmeter the flowmeter of choice for tens of thousands of practitioners. Porter's glass indicator tubes provide accurate and easy-to-read visual flow readings. The dual-seal, one-piece solid aluminium construction virtually eliminates internal gas leaks.
Features:
Porter Flowmeter Tubes provide accurate, visual flow readings
Dual Seal Fail-Safe automatically reduces and eliminates N20 if O2 is shut off or the pressure is reduced
Gas Control Block virtually eliminates internal gas leaks.
One-piece solid aluminium construction
Gas Flow Adjustment Knobs allow quick, accurate, one-hand adjustment of gas flows
Emergency Air Intake Valve automatically provides patient with ambient air if gas flow is interrupted
Check Valve prevents rebreathing of used gases and guards against CO2 build-up in the breathing bag
Positive ON-OFF Switch on all models, eliminating the possibility of accidentally leaving the machine on
Oxygen Flush Button provides an easily accessible override of all other gas flows and delivers 100%O2
Oxygen Quick Connect facilitates connection of resuscitation equipment to the central system
Total Flow Adjustment Knob controls flow of both N2O and O2 at any desired concentration. Total flow can be adjusted without affecting concentration. Low flow capability means economy of operation.
Optional Accessories
Porter Automatic Vacuum Switch
The Porter Automatic Vacuum Switch (AVS) prevents nitrous oxide from being administered without scavenging. Compatible with all Porter brand flowmeters and breathing circuits. The AVS is easily connected to the MXR flowmeter or on a remote mount.
Porter In-Line Vacuum Control
This simple yet effective device ensures proper vacuum control. Featuring an on/off switch and a visual indicator gauge with ball float, this device is simple to operate, yet critical for ensuring scavenging safety and efficiency.
MXR-3000 is ideal to help reduce patient pain and anxiety for minimally invasive hospital procedures including:
