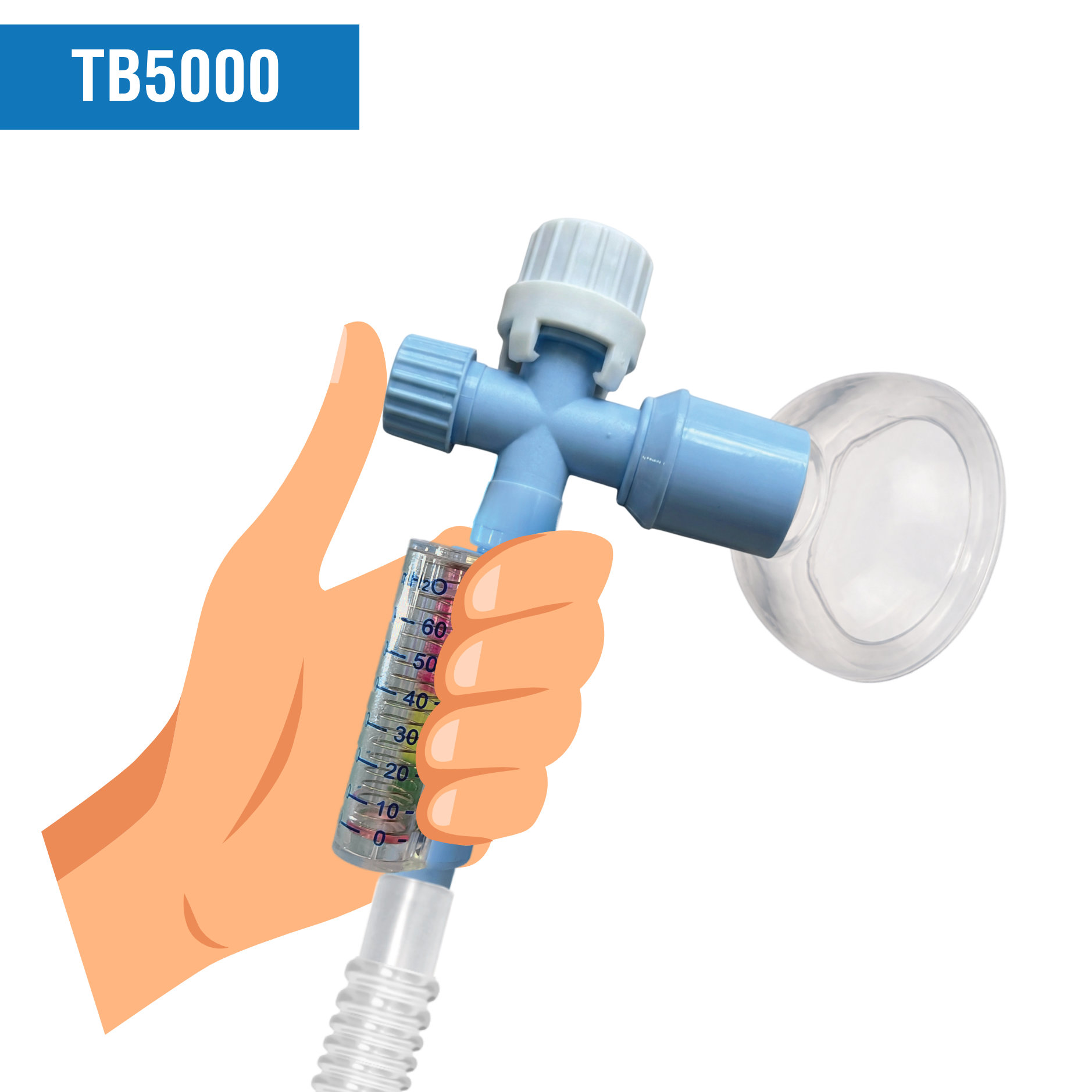

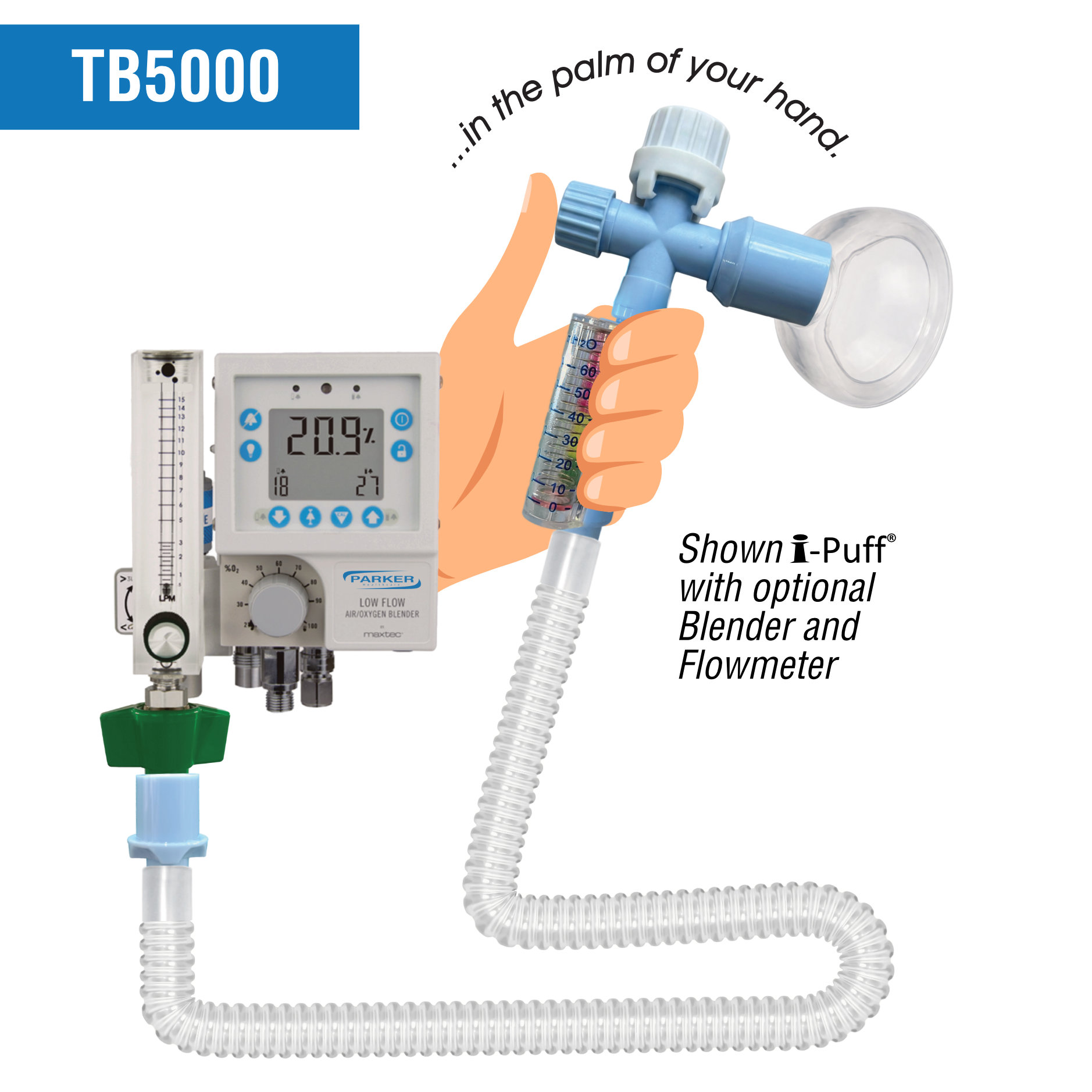

i-Puff® Disposable Infant T-Piece Resuscitator Circuit increases the ability to resuscitate more infants and provides accurate measurement of pressure values in the palm of your hand. Warm up your i-Puff® circuit. You can now deliver heated humidification through your i-Puff® Infant T-Piece Resuscitator Circuit. *Available with a Variety of Different Thread Flowmeter Nipples for Various Countries

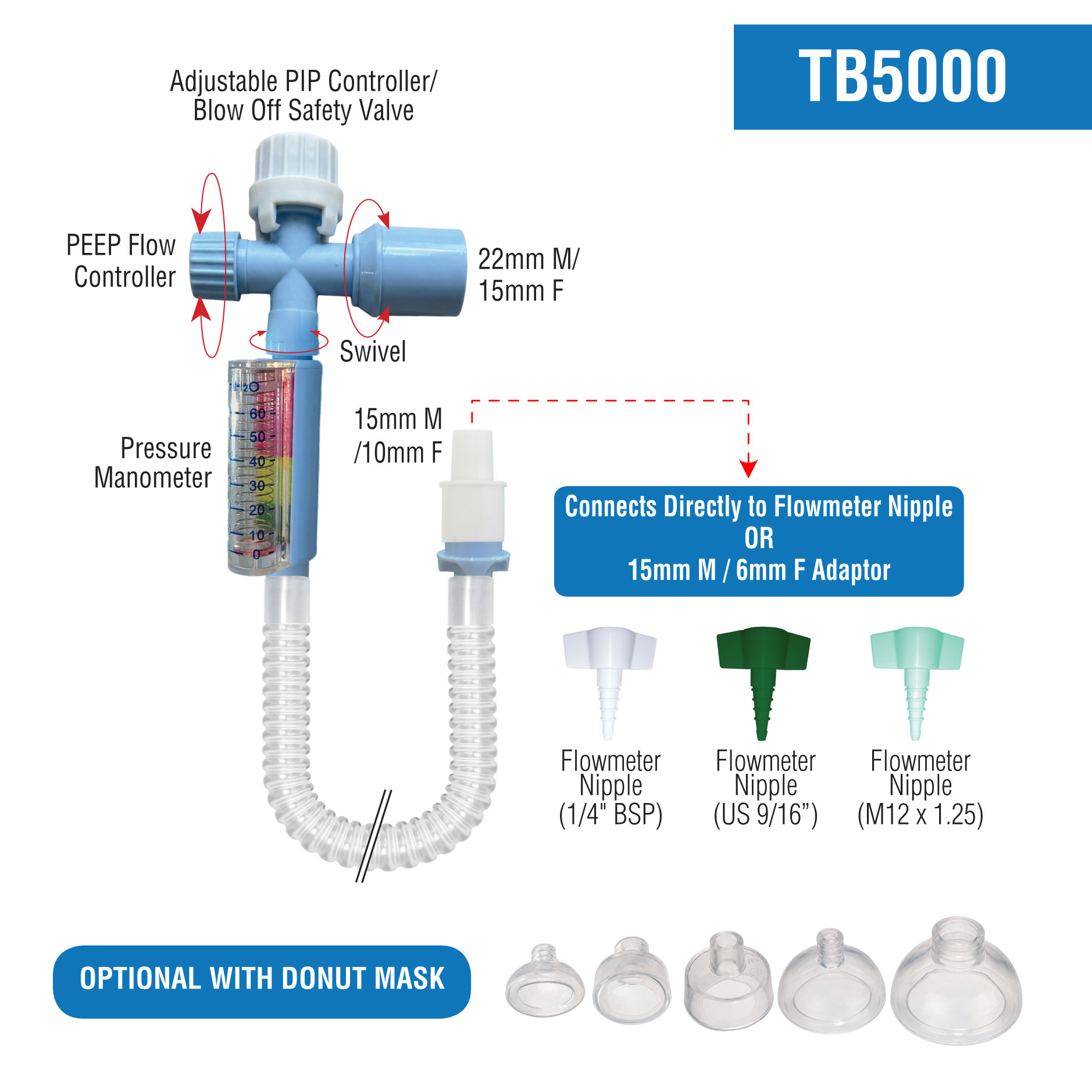

Included Features: • Double Swivel Elbow • Colour Coded Manometer Gauge • Adjustable PEEP Flow Controller • Adjustable PIP Flow Controller • Flowmeter Nipple • Light Weight • User Friendly • Economical • Available with Viral/ Bacterial Filter • Available with R2OF connector

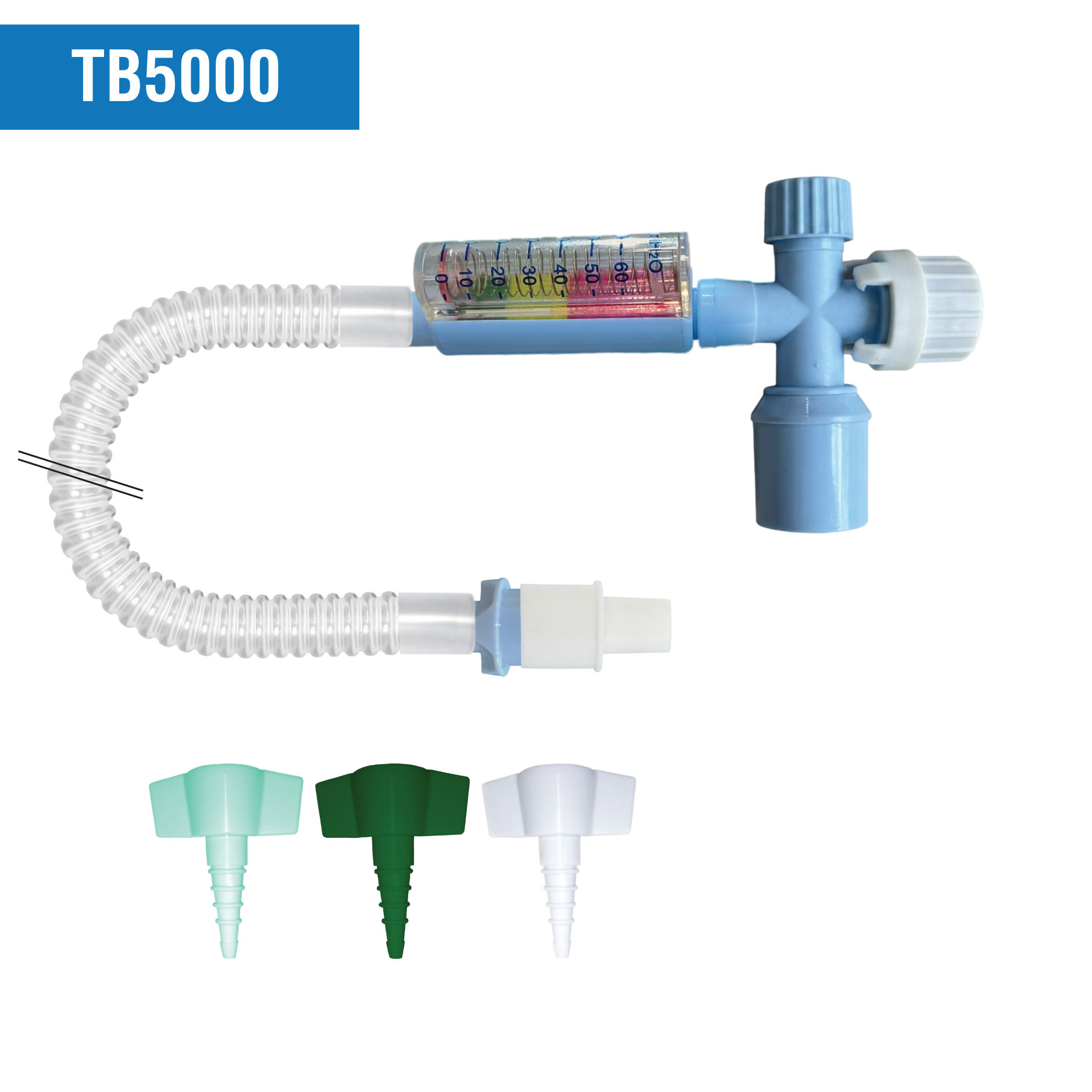

PART NUMBER MATRIX
Standard Circuit : i-Puff® Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Adjustable Maximum Pressure Controller, Double Swivel Elbow, Relief Blow-off Valve with Security Lock, Pressure Manometer Gauge, Universal Connector, Oxygen Flowmeter Nipple*, and 83"/2.1m Length 10mm ID Corrugated Tubing. The matrix lists only what is ADDED to this standard circuit.
Configuration
Flowmeter White Thread: 1/4 BSP
Flowmeter Green
Thread:
US
9/16 UNF
Flowmeter Light Green
Thread:
M12 × 1.25
Flowmeter White + Green
Thread:
1/4 BSP + US 9/16 UNF
